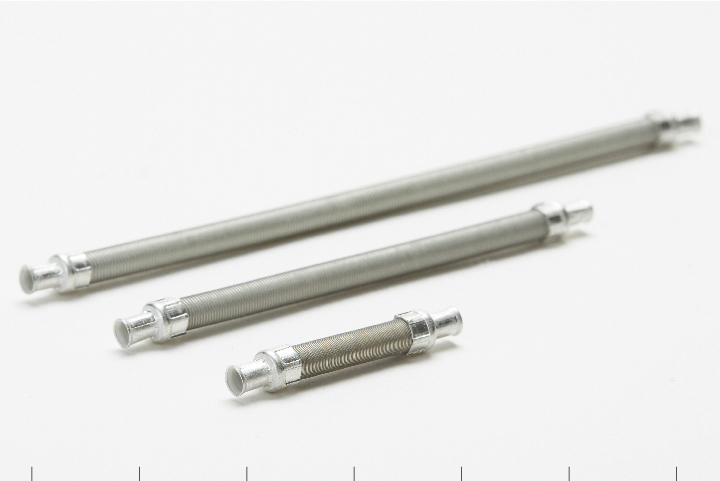

Wirewound type （Fiberglass element）
Traditional type of elements which diameter and length could be changed easily is suitable for custom.
Non-inductive type is also available.
Core Technology
Satisfying customerʼs needs by using our core technology.
Element TechnologyTechnology 01
Element Technology
We have various type of resistors for different applications.

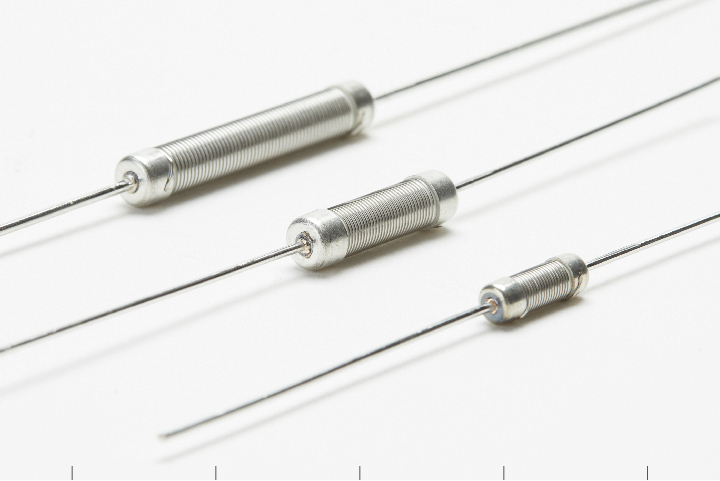

Wirewound type（Fiberglass element）
(scale / cm)
(scale / cm)
Non-inductive wirewound type（Fiberglass element）
Dealing with high frequency by winding wire by two different direction.
Dealing with high frequency by winding wire by two different direction.

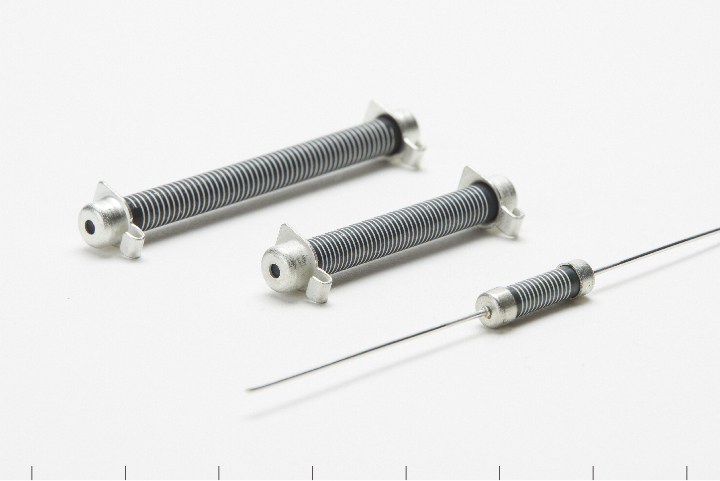

Wirewound type（Ceramic element）
(scale / cm)
Wirewound type（Ceramic element）
Since ceramic element is hard, wire which is superior at inrush current protection could be wound on it.
Application：Inrush current protection, dynamic brake
Since ceramic element is hard, wire which is superior at inrush current protection could be wound on it.
Application：Inrush current protection, dynamic brake
(scale / cm)

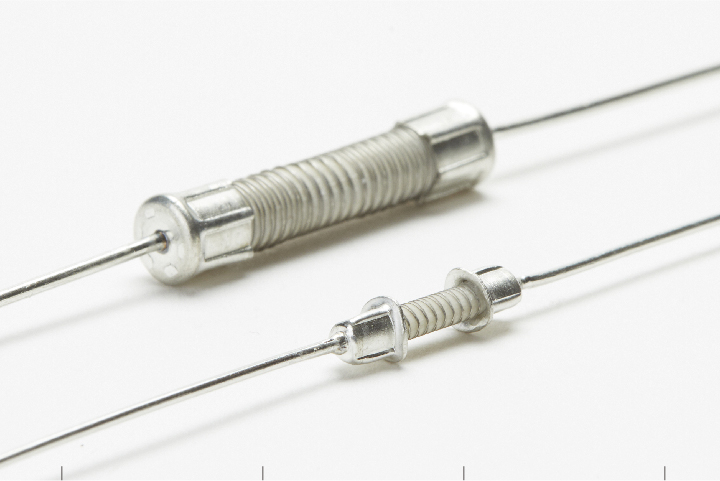

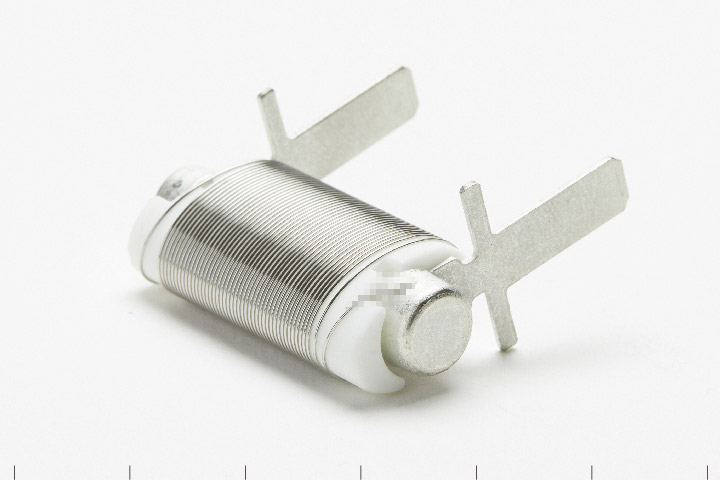

Wirewound type（Oval shape）
Due to oval shape, wire could be wound more than normal element. And it is also possible to save space on PCB board.
Application: Inrush current protection for automotive.
Due to oval shape, wire could be wound more than normal element. And it is also possible to save space on PCB board.
Application: Inrush current protection for automotive.
(scale / cm)

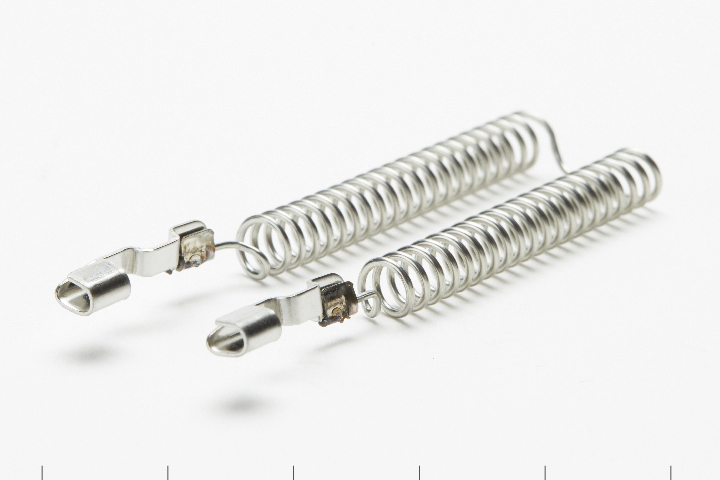

Coil
Coil type
Application: FA, Automotive
Coil type
Application: FA, Automotive
(scale / cm)

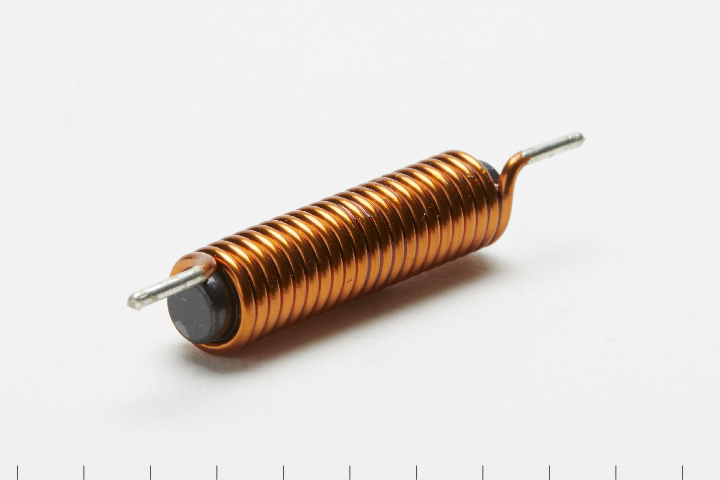

Ferrite element
Application: noise filtering
Application: noise filtering
Thin Film type
(scale / cm)
Metal Oxide Film
High resistance。
Range：100~1MΩ。
High resistance。
Range：100~1MΩ。
(scale / cm)

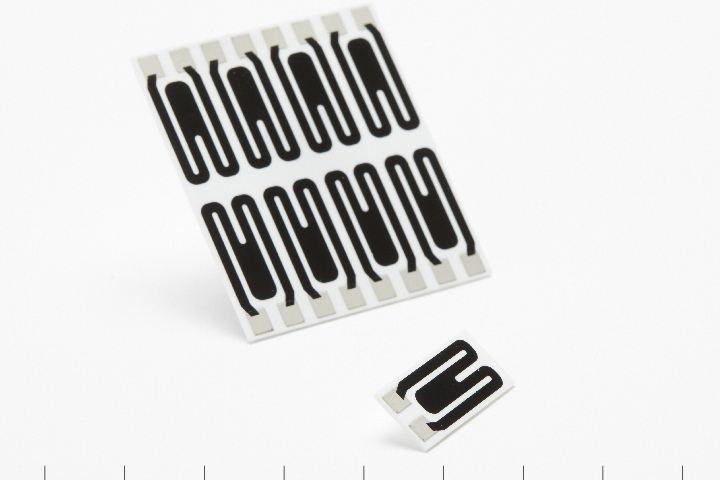

Thick Film Type
Printed thick film on ceramic board.
Printed thick film on ceramic board.
(scale / cm)

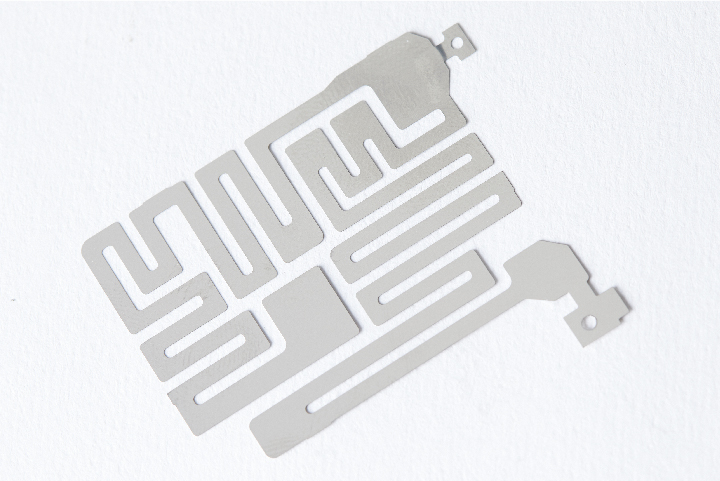

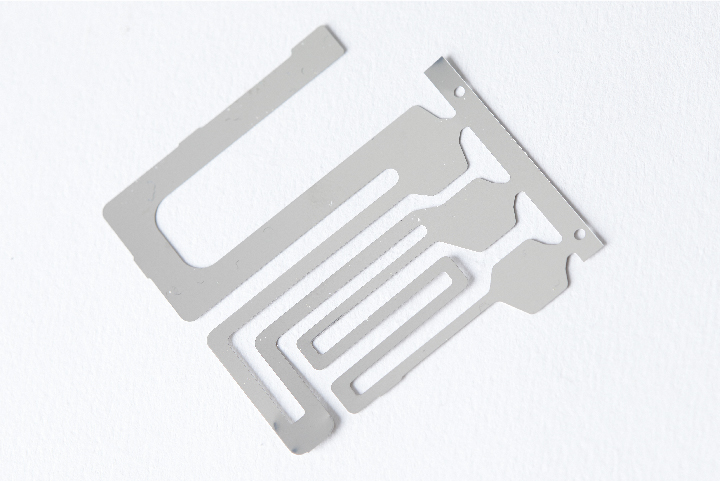

Foil Type
Die-cutting element.
Die-cutting element.

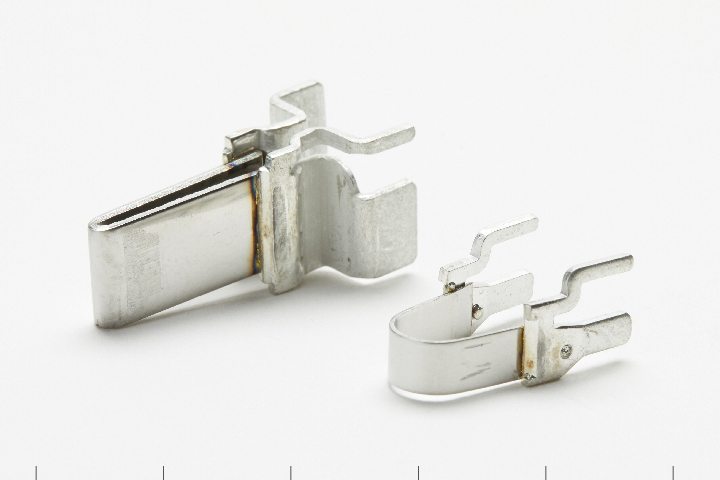

Ribbon Wire Type
(scale / cm)

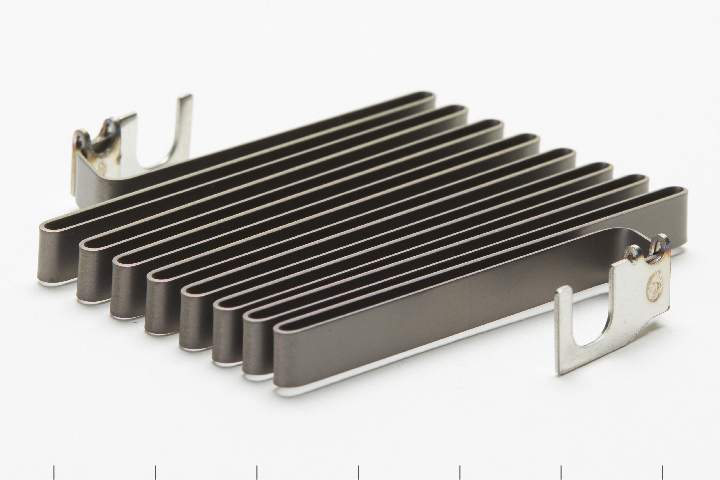

Ribbon Wire
Low resistance, high current withstanding.
Low resistance, high current withstanding.
(scale / cm)

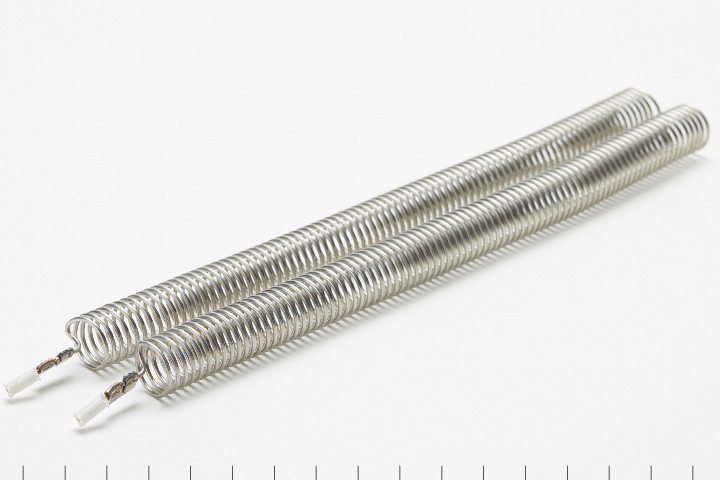

Ribbon Wire
Heater for quick starter of diesel engine.
Heater for quick starter of diesel engine.
(scale / cm)

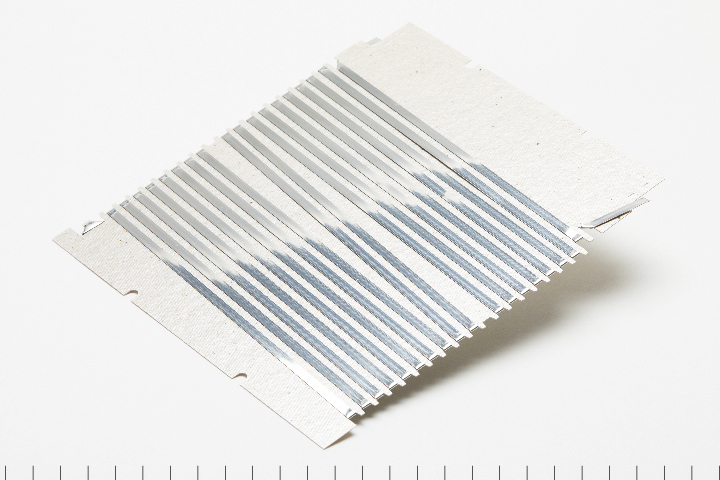

Ribbon wire（wound on Mica board）
Less thickness.
Less thickness.
(scale / cm)

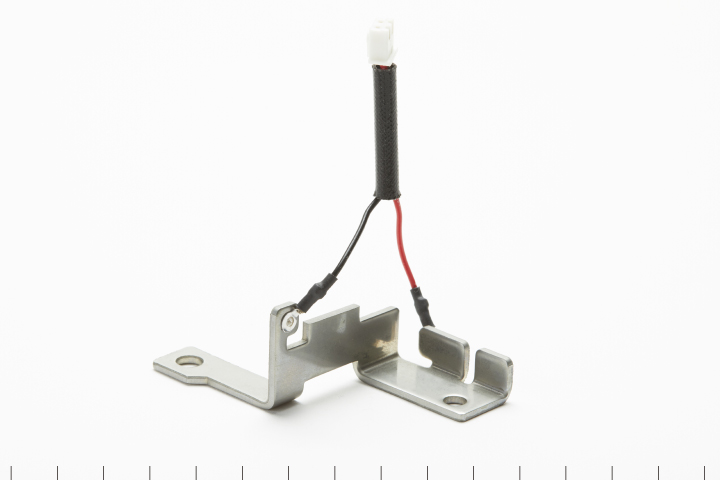

Bus-bar Type
To save space by connecting resistor to bus-bar.
To save space by connecting resistor to bus-bar.
We will solve your problems with full custom products and proposal capabilities.
